![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjmIl_rb4nwjEiXhf9bbiU12MGIuRKNbOHZIVQCuQNY5CuEY0jO4AOFX_0m_pd75Zxv3fu7bv-spsMwaBz1M9hZl0AD08_iz_4mSwu0NOg4qsL2tWXfkfxz0aDSy7FVMfYemxgaaTxVKNk/s400/DSC_0376.JPG) |
Logo side of the Miter Saw |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh7yanax1ssJ6br3upZ_SsvQ4rUj8dxGM9-ZmLvRflT3S7pQmgursxoDo71w2NLatfLKhybff38HiTnTXJ3cnQcygJsUE9qoVdhVNq36Y4L3Wqm7kneFlYfzxaoPKj3LxHXJYfOcsq004s/s400/DSC_0395.JPG) |
Back side of the saw plate. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiDnIN0Wo6qP_Mops6Qzzu4BeUvvbBttHJZW5_AoPSe4cIsmbIvRchlrSPicsNj97le4ouJ2gZTc-9vv058qC-OdeuqdHvRkMTFLQRO86UNQn1b9rBEOtqPLXa35OuseyaldpSqjQpg58k/s400/DSC_0379.JPG) |
Spray down the saw plate with Simple Green and let it soak for a few minutes |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjZ7MvTZckMxNKVD0Zmb7mpSffyk1AjMuO_KwqUs_YrkqvYdguNlXftssA_-EohIp3yQeqR3lFcqv0QQQOflmqDS28WGZPwkzK73atz6Ft_GNjZ6VeQL6seSjj6LSW7BUkjuBA35gUUsz4/s400/DSC_0380.JPG) |
Scotch-Brite pad and a small off cut of pine. I wrap the pad around the block like a sanding block. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiFjS4JUqNSRrOFEDeXNUB0rcpM-XXf9p6myB1OnIQArY93IaC6BCCneF-BXRcGw22oHoKO_kUllZxWVUd0IXNJ60fdZ0YTzmHUyZ3h-Jcl03UTltOMoeeGqClXEOnw1OE3BGE5doYH6t4/s400/DSC_0383.JPG) |
Apply elbow grease. It really doesn't take long at all or even a whole lot of effort. Change the pad like you would change sandpaper, they flatten, gum up, and wear out. I have a low tolerance for pulling out a new pad after I use all the spots on the old one. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiejkH6w4sei8iaDlI-Fw-rFwfa0Q5Oq3OnEBLm4UZdMB1KB7X6M2-kraasKsKF9yk-F3V_UBxYEQfN6SFAhe9pKtP-q1Z5jPtKE02Nd48FCSLO0iIgbytixR7tntlK-AbjUVE3PV3jwWs/s400/DSC_0387.JPG) |
Here I stopped after scrubbing one end for around two minutes to see the difference. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjZLb9z9baTnqiIGanh1LwsisvNDrwtx5x5TpSRSqBWwvbqfvAUtNS465AgWDTtfvCg8UR7a1iNlLYM9ez6QdE3EVxsJ-M6E0jUxZaxHwEoZuCSlFkjDd_8brtdAVGj_gzx0FBrMQQynBM/s400/DSC_0392.JPG) |
You can now make out what's left of an etching you could barely see before. "Made expressly for Goodell-Pratt Company, Toolsmiths, Greenfield - Mass. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh1BICM7mWAhd5FLKfZbnlSi2GmUQYWFSCaAEqnDDPGvRSmnG2BSvdZWniV6LDrys-lggKQKxjmG7mCIjG7ho2LKgccAzdSQFz7v6U2LsP5BdPdeG83rERl18rAeQPc814CVg8sTHslaPM/s400/DSC_0393.JPG) |
One side of the saw plate clean. Flip the plate and repeat. Wipe off the remaining cleaner with a cloth. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj_8kfMGdCivCtd9qJC3PsQ6fN96_JWiMGkzA_M0kwFViW6XHPYy982whdohqFiRix74pJZwRVR952BSIK1-uqrma0O3pffoLWI-RhnGTYUqkEZ288z9jvN-q1ich2hPVZ8UMy6jKy_qEE/s400/DSC_0396.JPG) |
Face side of the plate cleaned up. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh7JsGQ2d3d0Mmw2QS0JUEWvDTOkQgx644m84SAjSWN1B86bJFJwcmJhpUWj1SSD0NUfVN8uiDQaXUVYgFrxu9kRJBBW_uy3w9Mt0CJYxChM_VAr0crrgQPrebRmbo_6D67jw0K3B2EEco/s400/DSC_0398.JPG) |

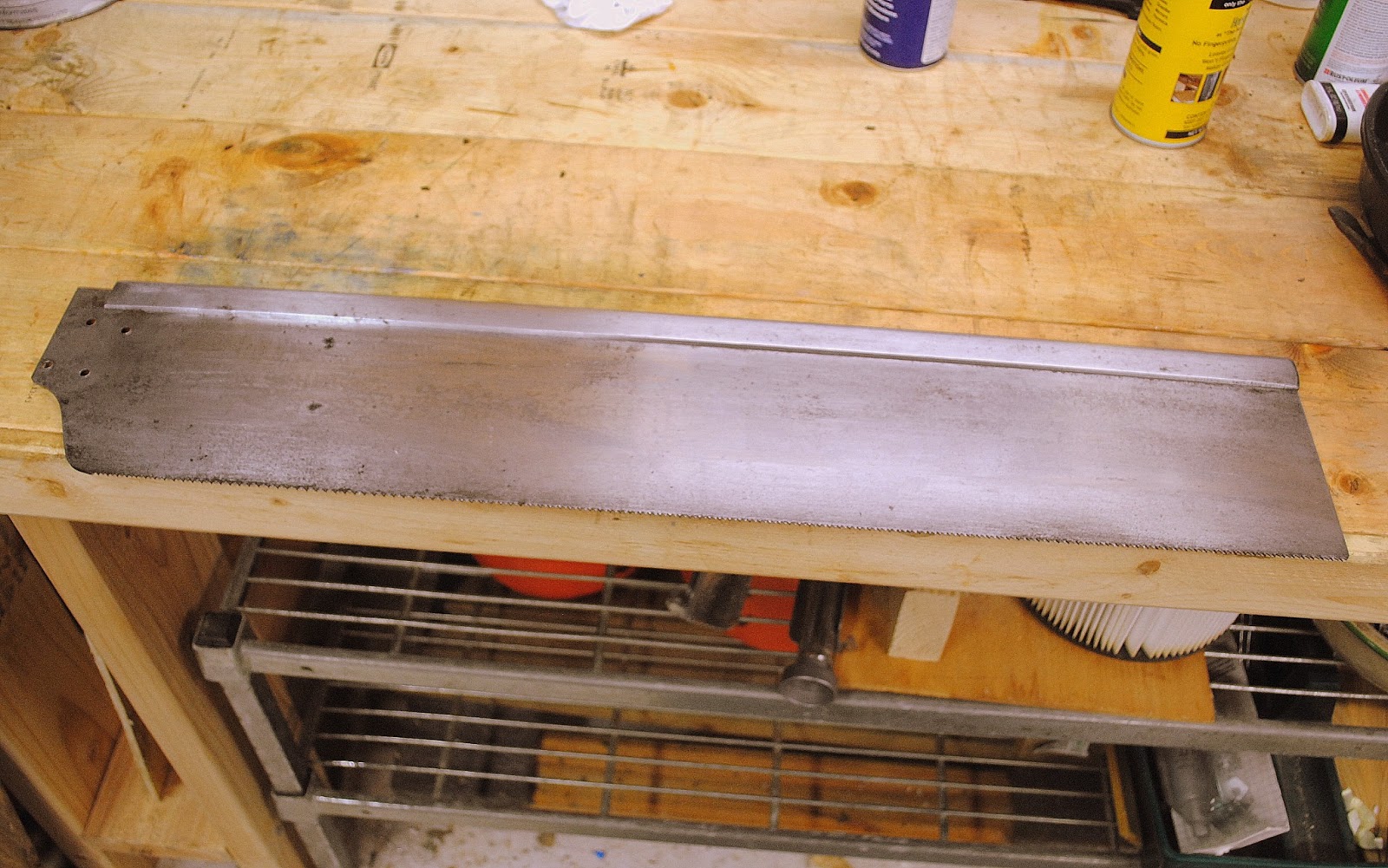

After the scrubbing is done, I dry off the plate thoroughly, then I lay down a light coat of WD-40 to displace any remaining moisture, wipe that down, then apply a spray coat of beeswax furniture polish, buff that down with a clean fresh cloth and you have a very fresh and clean saw plate. |
Next comes sharpening and making a new handle. I'm still trying to nail down the right pattern handle for this saw but I have a nice piece of cherry in the shop that will work perfectly.
Ratione et Passionis
Oldwolf
Derek, that is one beautiful miter saw. I picked up a Goodell Manufacturing Co. miter box (c1924) at a garage sale and spent a year tracking down a 28" x 5" miter saw. While I really wanted one that had the "Made expressly for Goodell Manufacturing Co." etching on it, I'm happy with the "Millers Falls Miter Box," etching.
ReplyDeleteYou did a beautiful job of restoring the saw plate along with preserving a very cool etching of your own. Based on the etching, I'd say that this saw sat in a Goodell-Pratt miter box some time in the mid-to late 20s and beyond.
By chance, did you pick up the miter box to go with it? Or were you looking to add it to a sawless miter box?
Looking forward to your post on making a handle.
