Check Another Bucket List Box
A while back I had the opportunity to do some of the work I've dreamed of. I built a couple commissions for my favorite museum. The Castlerock Museum of Arms and Armor. In an alcove of the basement level there are a few fantastic 17th century great chairs (and one suspicious cabinet) alongside a great display of silver serving platters.
The museums owner wanted three items made. A small pedestal box to raise a very ornate jewelry box up off the carpet. A board he could attach and display several period silver and tin spoons. And a small shelf to display three rare ornate period plates.
There was a little back and forth on the design and getting the color dark enough so he was happy took several tries. But in the end he was very pleased and I have a little feather for my hat. Some of my work is on display in a museum.

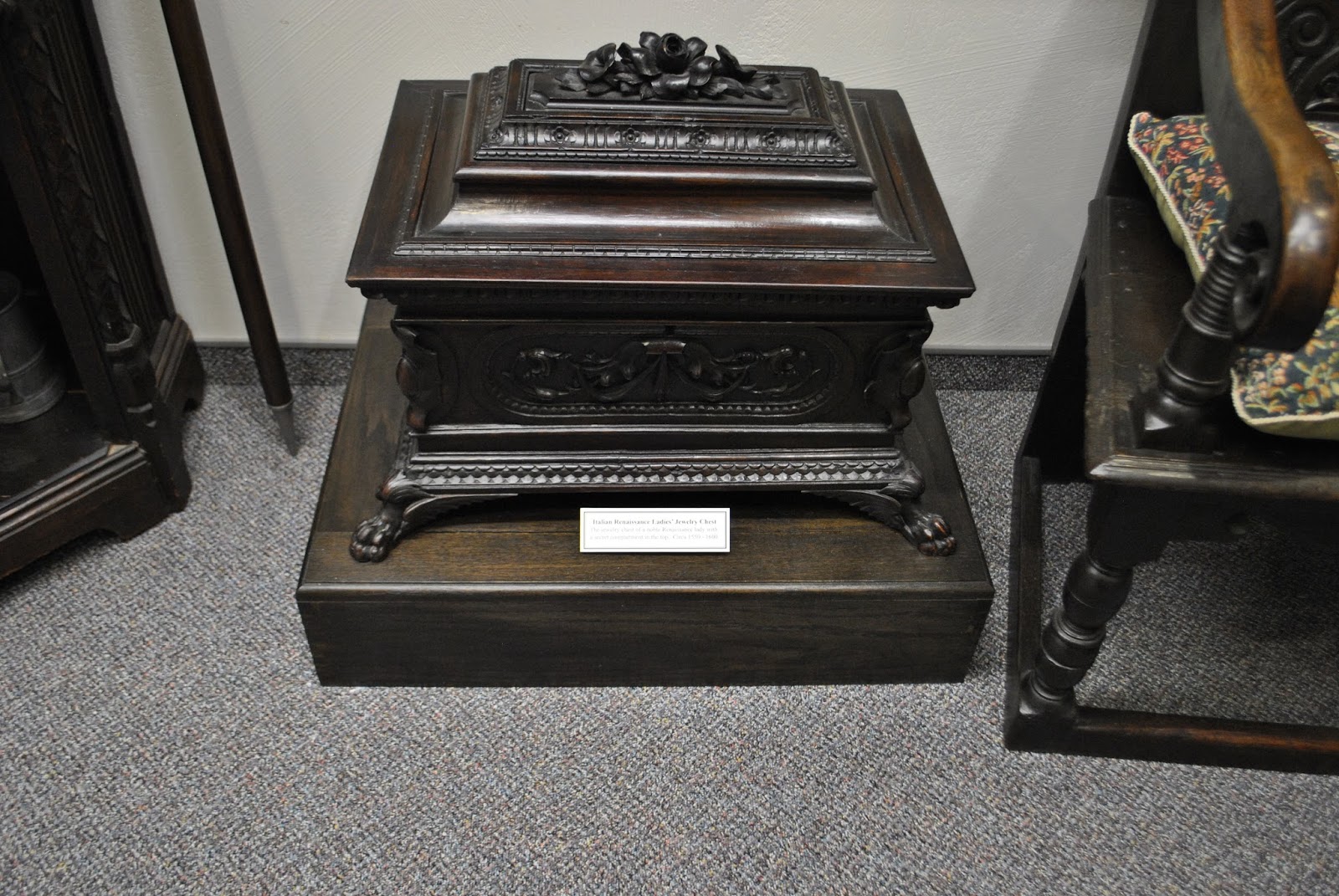

The pedestal was designed to be very understated so not to battle with the delicate ornament of the jewelry box. A short dovetailed box with a lid made of four rails and a floating panel so no warping or cleats should be needed with seasonal movement.
This is a good example of the debate I went through on every piece here. In particular I decided to use a electric router to cut the moulding edge around the top. I figure even on a subconscious level the modern execution will set the pedestal apart from the piece it's meant to display.
The spoon board was a different design issue. I worked with the director over several designs I wanted to add a little ornament to help offset the spoons, maybe even draw some attention to them. I traced out the mock up fan display they'd done on foam board and stepped off the arches to correlate to each spoon.
After sawing everything out with a coping saw and refining with rasps and a card scraper I went back in with a scratch stock and cut in the shadow line finishing the points with a V carving chisel.
The plate shelf was the most fun. We wanted something that definitely wasn't modern looking. I started this design based on the corbels, (which are difficult to see in these photos) I took theri design from an engraving of a 17th century kitchen scene.
From there I worked out the gothic arch back board with a handcut moulding on the underside of the shelf itself. The whole thing was pretty successful, I wouldn't mind having a shelf or two like this in my own home.
The finish ended up a little complicated. First I layered on some iron buff to react with the tannins in the wood and darken the grain significantly, then went two coats of an "Ebony" oil based stain. I followed this with a half dozen coats of Garnet Shellac which was rubbed down with 0000 steel wool to cut the glossiness. Then a application and buff of dark colored paste wax and I was done. Just finishing these pieces took two weeks and with the exception of the spoon board I got the coloring pretty well on (The spoon board was already edge joined and cut for the museum by another cabinet maker and given to me. Not wood I chose, nor done really to my standards, but you work with what you get sometimes)
All in all a ridiculously gratifying experience I hope to repeat several times more in my career.
Ratione et Passionis
Oldwolf
The museums owner wanted three items made. A small pedestal box to raise a very ornate jewelry box up off the carpet. A board he could attach and display several period silver and tin spoons. And a small shelf to display three rare ornate period plates.
There was a little back and forth on the design and getting the color dark enough so he was happy took several tries. But in the end he was very pleased and I have a little feather for my hat. Some of my work is on display in a museum.
The pedestal was designed to be very understated so not to battle with the delicate ornament of the jewelry box. A short dovetailed box with a lid made of four rails and a floating panel so no warping or cleats should be needed with seasonal movement.
This is a good example of the debate I went through on every piece here. In particular I decided to use a electric router to cut the moulding edge around the top. I figure even on a subconscious level the modern execution will set the pedestal apart from the piece it's meant to display.
The spoon board was a different design issue. I worked with the director over several designs I wanted to add a little ornament to help offset the spoons, maybe even draw some attention to them. I traced out the mock up fan display they'd done on foam board and stepped off the arches to correlate to each spoon.
After sawing everything out with a coping saw and refining with rasps and a card scraper I went back in with a scratch stock and cut in the shadow line finishing the points with a V carving chisel.
The plate shelf was the most fun. We wanted something that definitely wasn't modern looking. I started this design based on the corbels, (which are difficult to see in these photos) I took theri design from an engraving of a 17th century kitchen scene.
From there I worked out the gothic arch back board with a handcut moulding on the underside of the shelf itself. The whole thing was pretty successful, I wouldn't mind having a shelf or two like this in my own home.
The finish ended up a little complicated. First I layered on some iron buff to react with the tannins in the wood and darken the grain significantly, then went two coats of an "Ebony" oil based stain. I followed this with a half dozen coats of Garnet Shellac which was rubbed down with 0000 steel wool to cut the glossiness. Then a application and buff of dark colored paste wax and I was done. Just finishing these pieces took two weeks and with the exception of the spoon board I got the coloring pretty well on (The spoon board was already edge joined and cut for the museum by another cabinet maker and given to me. Not wood I chose, nor done really to my standards, but you work with what you get sometimes)
All in all a ridiculously gratifying experience I hope to repeat several times more in my career.
Ratione et Passionis
Oldwolf
Those look great. My favorite is the plate shelf. The spacing of the arches, favoring the middle is really satisfying.
